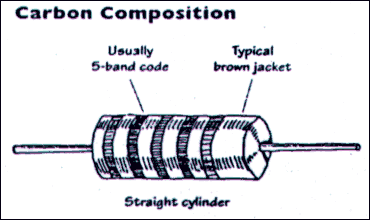

2. CARBON COMPOSITION
This type is also popular. Its made from a mixture of carbon powder and glue like binder. To increase the resistance, less carbon is added. These resistors show predictable performance, low inductance, and low capacitance. Power ratings range from about 1/4 to 2 W. Resistances range from 1 Ohm to about 100 MOhm, with tolerances around +/- 5 percent.
3. METAL OXIDE FILM
This type is general purpose resistor. It uses a ceramic core coated with a metal oxide film. These resistors are mechanically and electrically stable and readable during high temperature operation. They contain a special paint on their outer surfaces making them resistant to flames, solvents, heat, and humidity. Typical resistances range from 1 Ohm to 200 kOhm, with typical tolerances of +/- 5 percent
4. PRECISION METAL FILM
This type is very accurate, ultra low noise resistor. It uses a ceramic substrate coated with a metal film, all encased in an epoxy shell. These resistors are used in precision devices, such as test instruments, digital and analog devices, and audio and video devices. Resistances range from about 10 Ohm to 2 MOhm, with power rating from 1/4 to about 1/2 W, and tolerances of +/- 1 percent.
